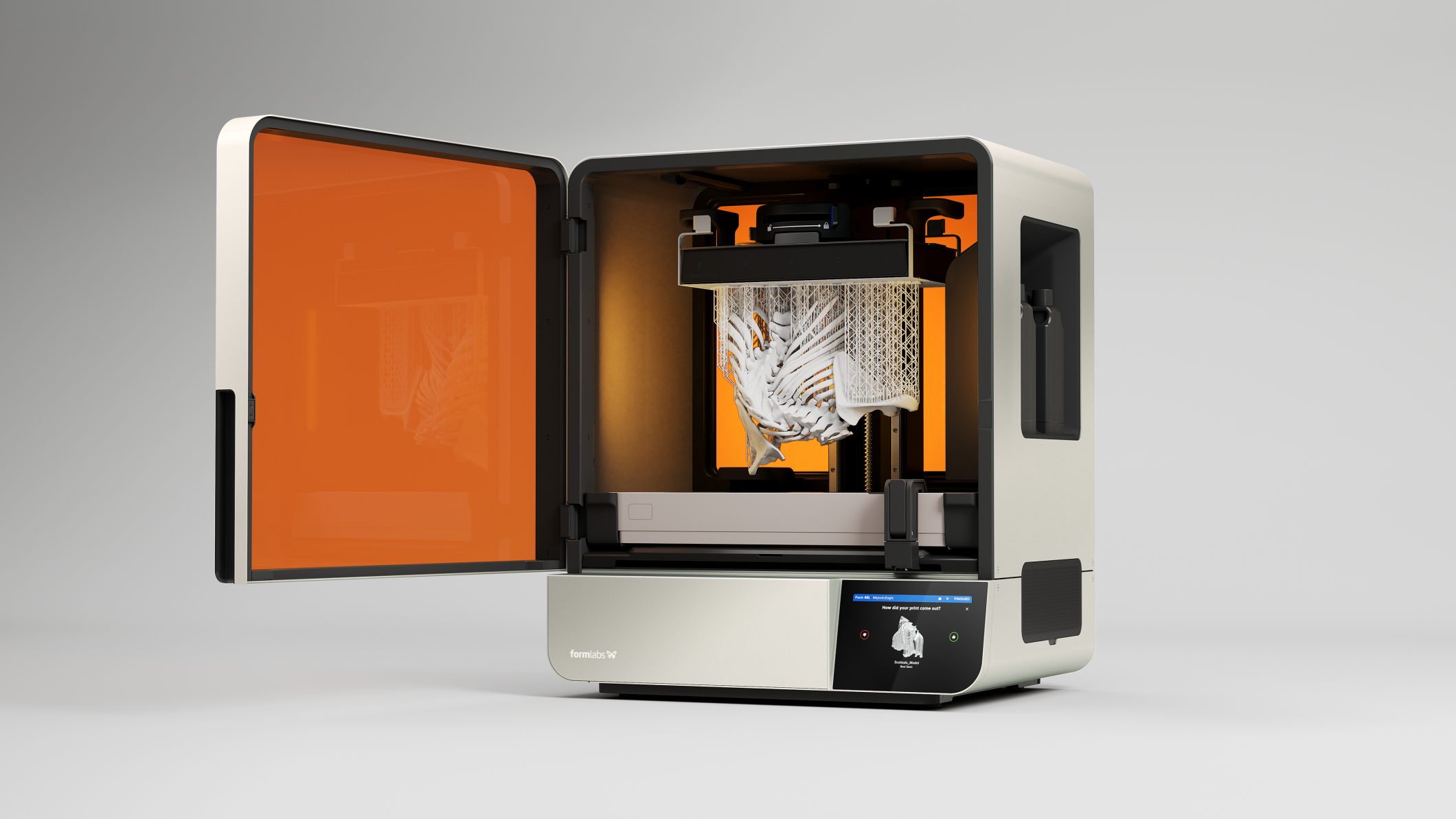

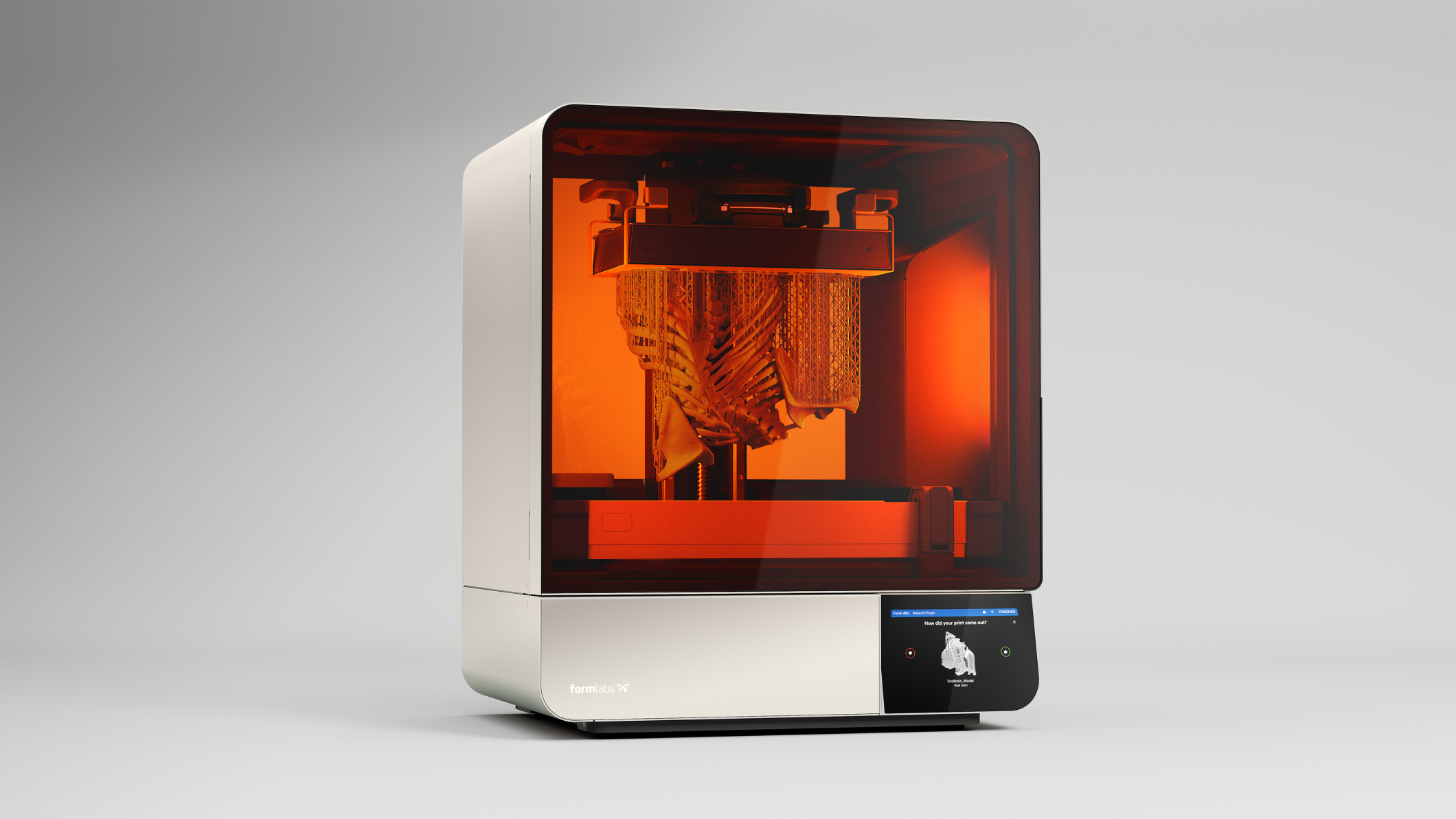

Form 4L – Large-Format 3D Printing in Record Time

3D Print Large Parts in Under 6 Hours

The Formlabs Form 4L enables large-format parts and high part volumes in hours instead of days. Powered by Low Force Display™ (LFD) Masked Stereolithography (MSLA), you get precise, repeatable results with an excellent surface finish – ideal for development, prototyping, and low-volume production.



CONSULT US NOW
×

Form 4L: Your Advantages in Industrial 3D Printing

Fast & Reliable

With validated print settings, intelligent process monitoring, and newly developed materials, the Form 4L consistently delivers high-quality, repeatable results – from single parts to production runs.

×
Smooth Surfaces

Lower separation forces, easy-to-remove supports, and 46 µm pixel size with preconfigured anti-aliasing for ultra-fine surface quality and supports that remove cleanly.

×
Crisp Details

A highly collimated light system ensures uniform exposure and subpixel resolution – for razor-sharp edges and maximum precision, even on complex geometries.

×

Key Facts

Build Volume: 353 × 196 × 350 mm (24.2 l)
Dimensions: 664 × 528 × 794 mm
Weight: 58.5 kg
Technology: Masked Stereolithography (MSLA) with Low Force Display™ (LFD)
Pixel Size / XY: 46 µm (preconfigured anti-aliasing)
Print Speed: bis 80 mm/h (material-dependent)
Layer Thickness:  5 – 200 µm (material-dependent)
Availability: available now



DATA SHEET

More Highlights

Highly Collimated Backlight Unit with 145 LEDs
The Form 4L’s Low Force Display™ (MSLA) uses a powerful Backlight Unit with 145 LEDs and collimating optics to ensure uniform exposure across the entire build platform.
The result: sharp edges, precise subpixel details (46 µm), and consistent part quality – even on large print jobs.

Integrated 5 MP Camera with Remote Monitoring
An integrated 5-megapixel camera automatically documents every print job (photo & timelapse) and enables remote monitoring over your network or via the cloud.
For regulated environments, the camera can be disabled, covered, or removed.

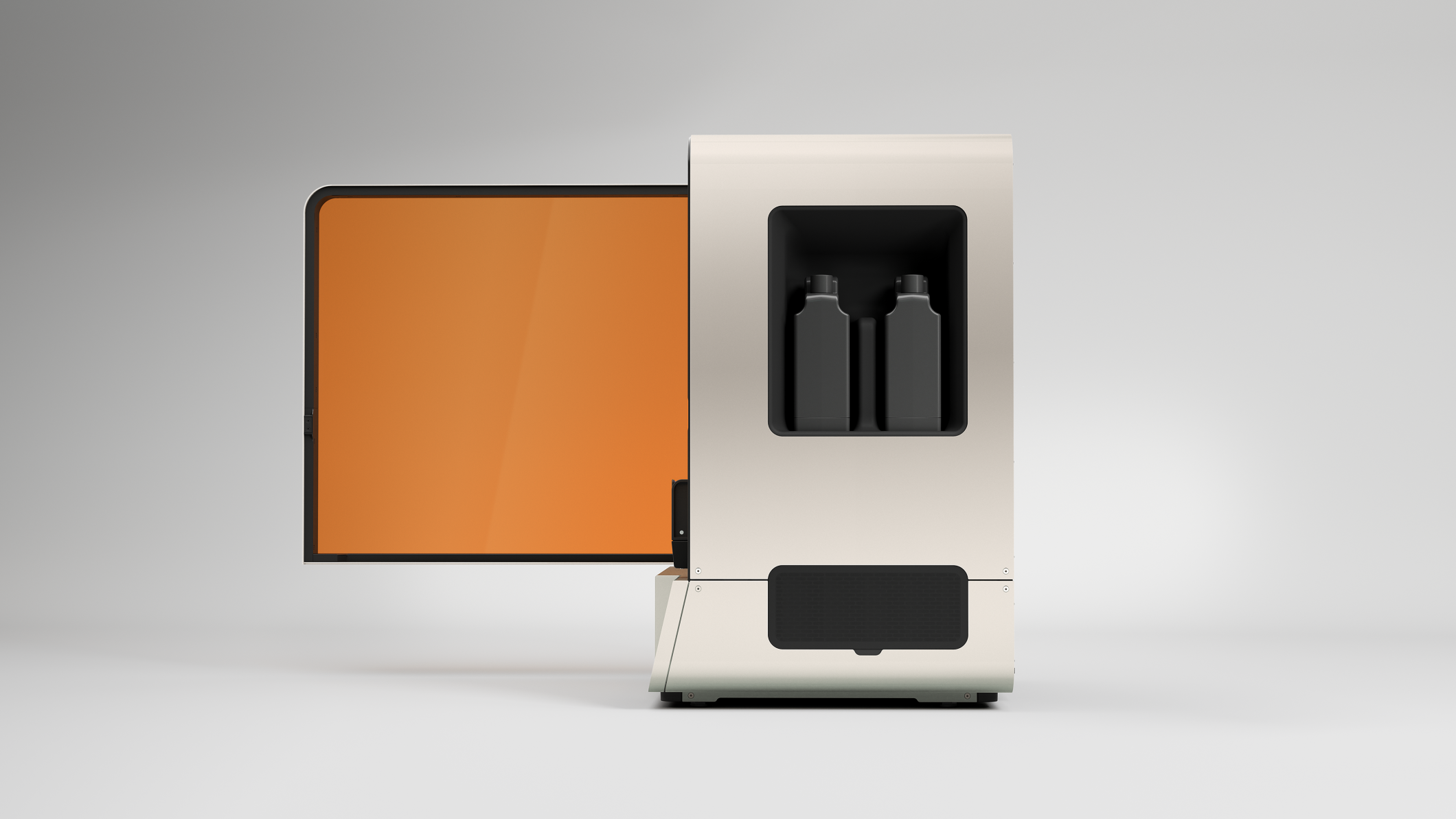

Automatic Resin Handling & Long-Lasting Tank
Two cartridges and automatic dispensing reduce manual intervention and downtime. The next-generation system is designed for 75,000+ layers, reduces waste by 63%, requires 30 % less shelf space, and is compatible with the Resin Pumping System – ideal for high throughput.

7-Inch Touchscreen with an Intuitive Interface
From automatic calibration to status checks, all key functions can be managed centrally via the 7-inch interactive touchscreen or over the network. This makes the Form 4L exceptionally easy to use while supporting consistent, reliable processes.

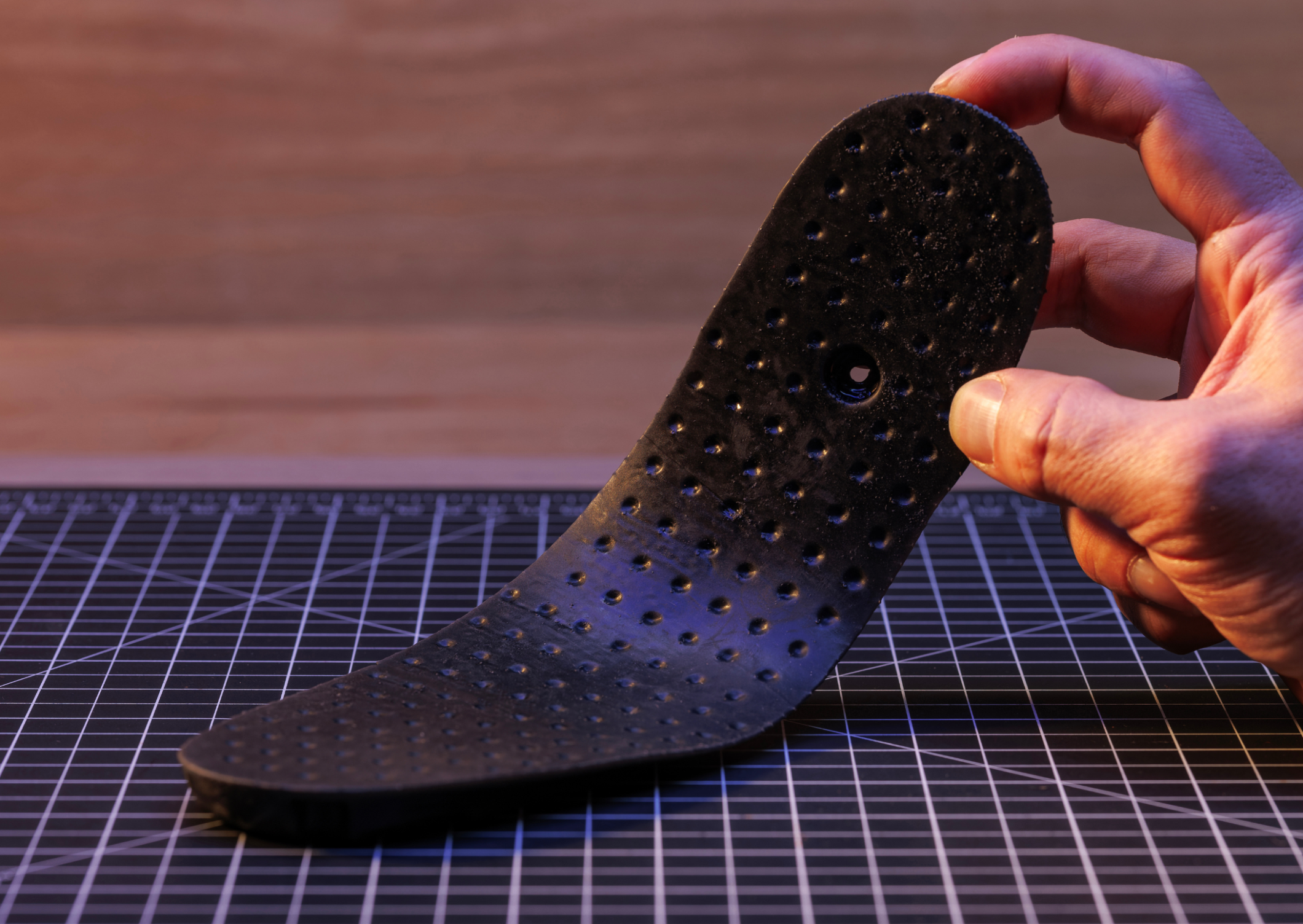

New: Flexible 80A Resin V2

Flexible 80A Resin V2 is a resilient 3D printing elastomer that rivals the look, feel, and function of 80A cast urethanes, TPUs, and hard rubbers.

Parts printed in Flexible 80A Resin V2 snap back into place and withstand repeated bending, tension, and compression. Create tear-resistant functional prototypes and end use parts, protect sensitive components with soft inserts and fixtures, or design refined padding and grips with tack-free surfaces and a matte, black finish.

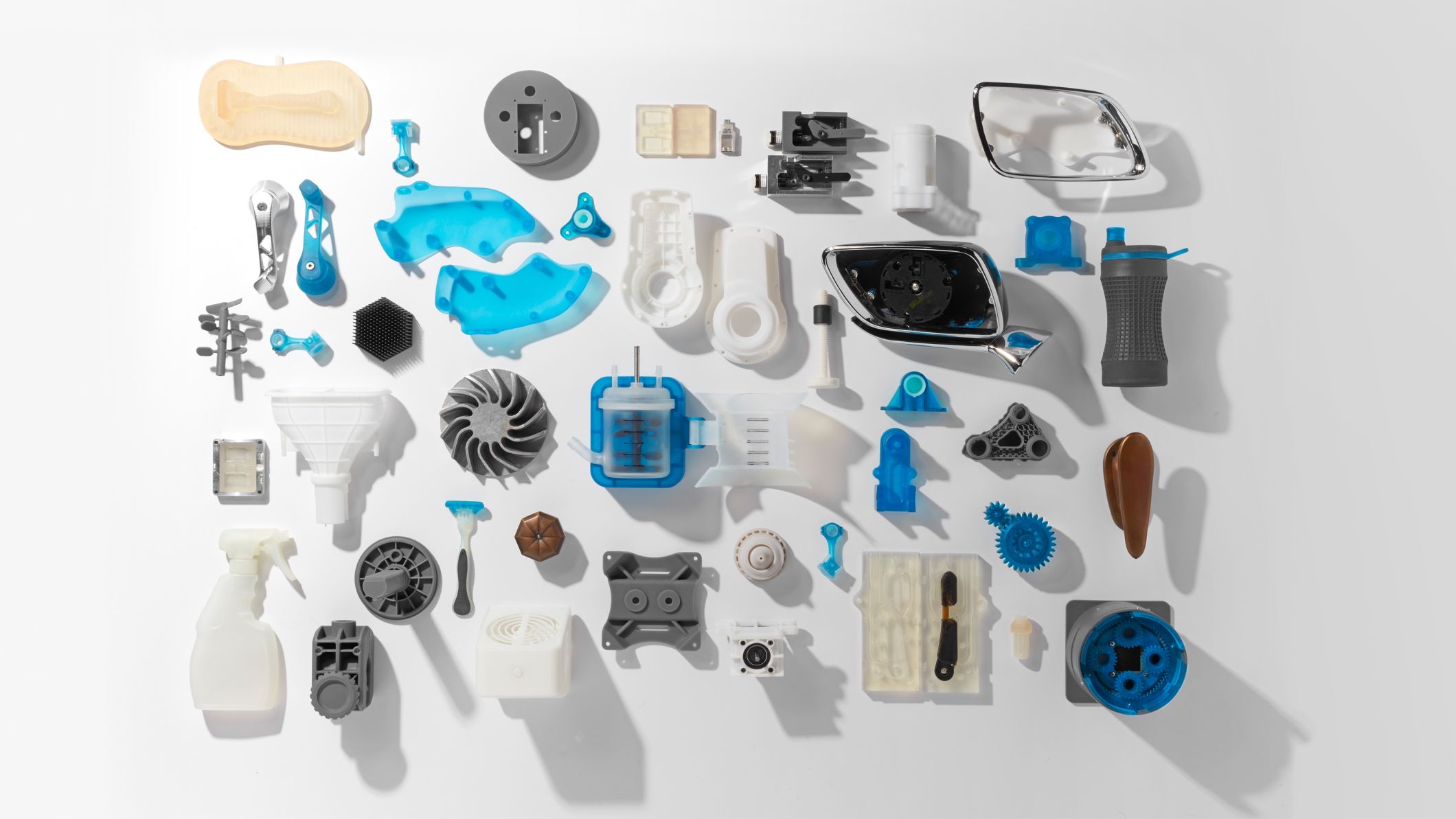

URMA Formlabs 3D Druck 3D Printing Desktop Printer Materials Discount

URMA Webshop

You can get Formlabs printers, materials, and accessories from us not only on request – they are also available in the URMA webshop and can be conveniently ordered online 24/7.

TO THE WEBSHOP
URMA AG | Innovation | 60 Jahre | Werte | Mensch und Umwelt

URMA – One Partner for Everything

URMA is your 3D printing expert. From initial consultation through quality verification, we support you in implementing or expanding your additive manufacturing. Benefit from URMA’s comprehensive services:

  • Consulting
  • Services
  • Training & Support
  • Financing
  • Production Technologies
  • Showroom
  • Network
  • Webshop



More about our 3d printing offer

Now Introducing: Form 4 and Form 4L

Do you have any questions?

Frank Gersbach – Manager Additive Manufacturing
