Burnishing and Deep Rolling

Defined Surfaces and Extended Tool Life – Right on the Machine

Roller burnishing and deep rolling improve metal surfaces through cold forming, reducing roughness and enhancing load-bearing capacity, sealing, and sliding properties. Deep rolling also introduces compressive residual stresses to increase fatigue strength in highly stressed components.

Our solutions integrate directly into turning and milling centers, enabling complete machining in a single setup for efficient, reliable, and repeatable results. Whether mechanical or hydrostatic, for internal, external, or freeform surfaces, we offer the right technology to achieve high-quality surface finishes without additional grinding or polishing.

×
URMA - Schweiz - Switzerland - Suisse - Suiza - Werkzeugbau - Maschinenbau - Reibwerkzeug - Bohren - Ausdrehen - Reiben - Präzisionswerkzeuge - Werkzeugsysteme - Tool Systems - Tool manufacturers - Reaming - Drilling -  Boring System - Production d'outils de Précision - Systèmes d'outils - Fabricants d'outils - Outil d’alésage - Alésage - Foreurs - Usinage - Fabricación de herramientas - Ingeniería mecánica - Impresión 3D de metales - Herramientas

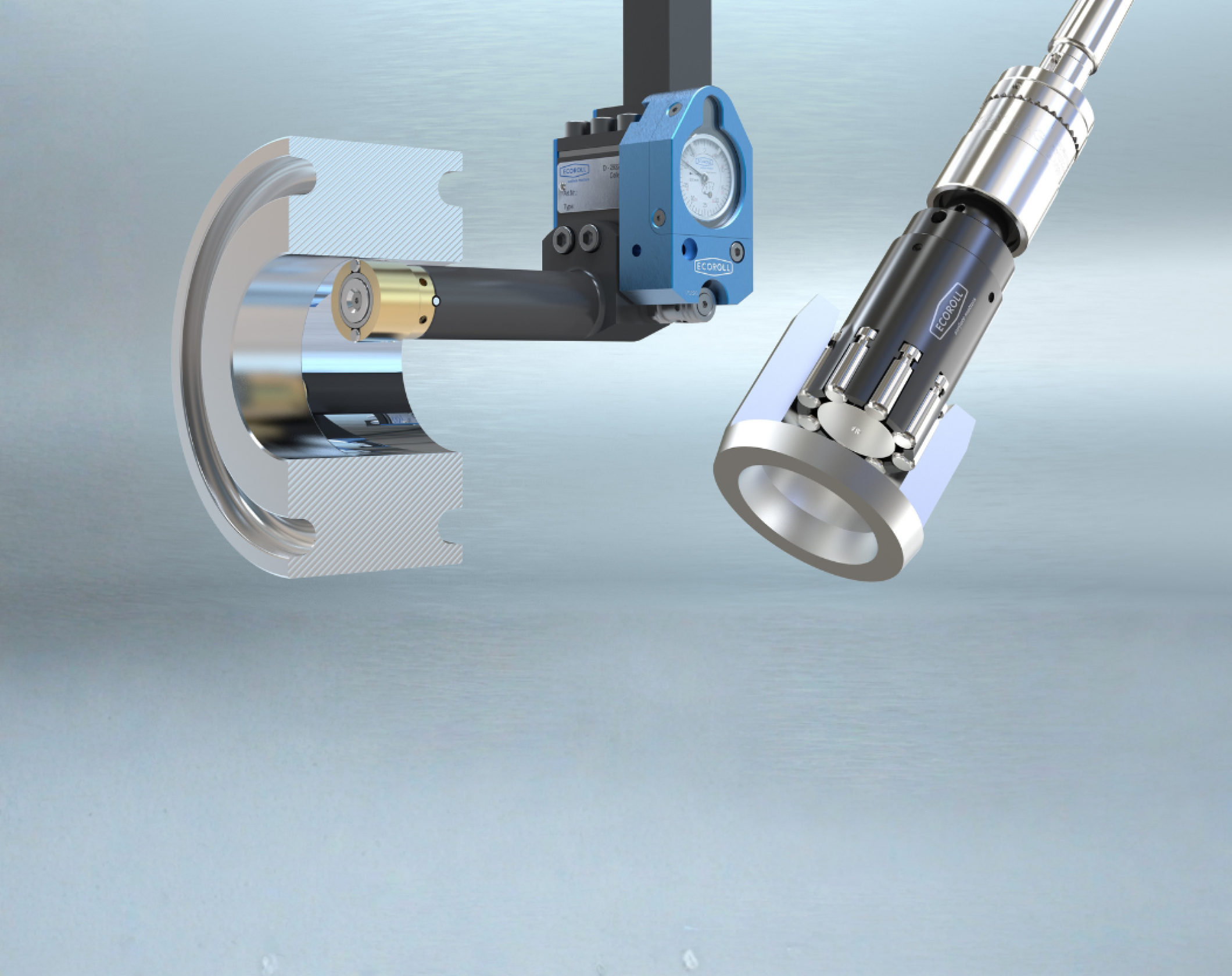

Roller Burnishing

Roller burnishing significantly improves surface smoothness, delivering the desired surface properties, such as better sliding characteristics and increased load-bearing capacity. It also improves wear resistance and extends component service life.



Operating Principle

  • Mechanical
    Single- or multi-roller tools offering easy adjustment, high precision, and reliable operation.
  • Hydrostatic
    Smooths and hard-burnishes complex contours and freeform surfaces in all metallic materials up to 65 HRC.



Applications

  • Internal
    • Cylindrical bores from 3.7 mm in diameter
    • Tapered bores
    • Any rotationally symmetrical internal contours
    • Spherical surfaces
    • Internal fillets and grooves
  • External
    • Cylindrical surfaces from 0.5 mm shaft diameter
    • External tapers
    • Any rotationally symmetrical external contours
    • Spherical and freeform surfaces
    • Ball machining
    • External fillets and undercuts
URMA - Schweiz - Switzerland - Suisse - Suiza - Werkzeugbau - Maschinenbau - Reibwerkzeug - Bohren - Ausdrehen - Reiben - Präzisionswerkzeuge - Werkzeugsysteme - Tool Systems - Tool manufacturers - Reaming - Drilling -  Boring System - Production d'outils de Précision - Systèmes d'outils - Fabricants d'outils - Outil d’alésage - Alésage - Foreurs - Usinage - Fabricación de herramientas - Ingeniería mecánica - Impresión 3D de metales - Herramientas

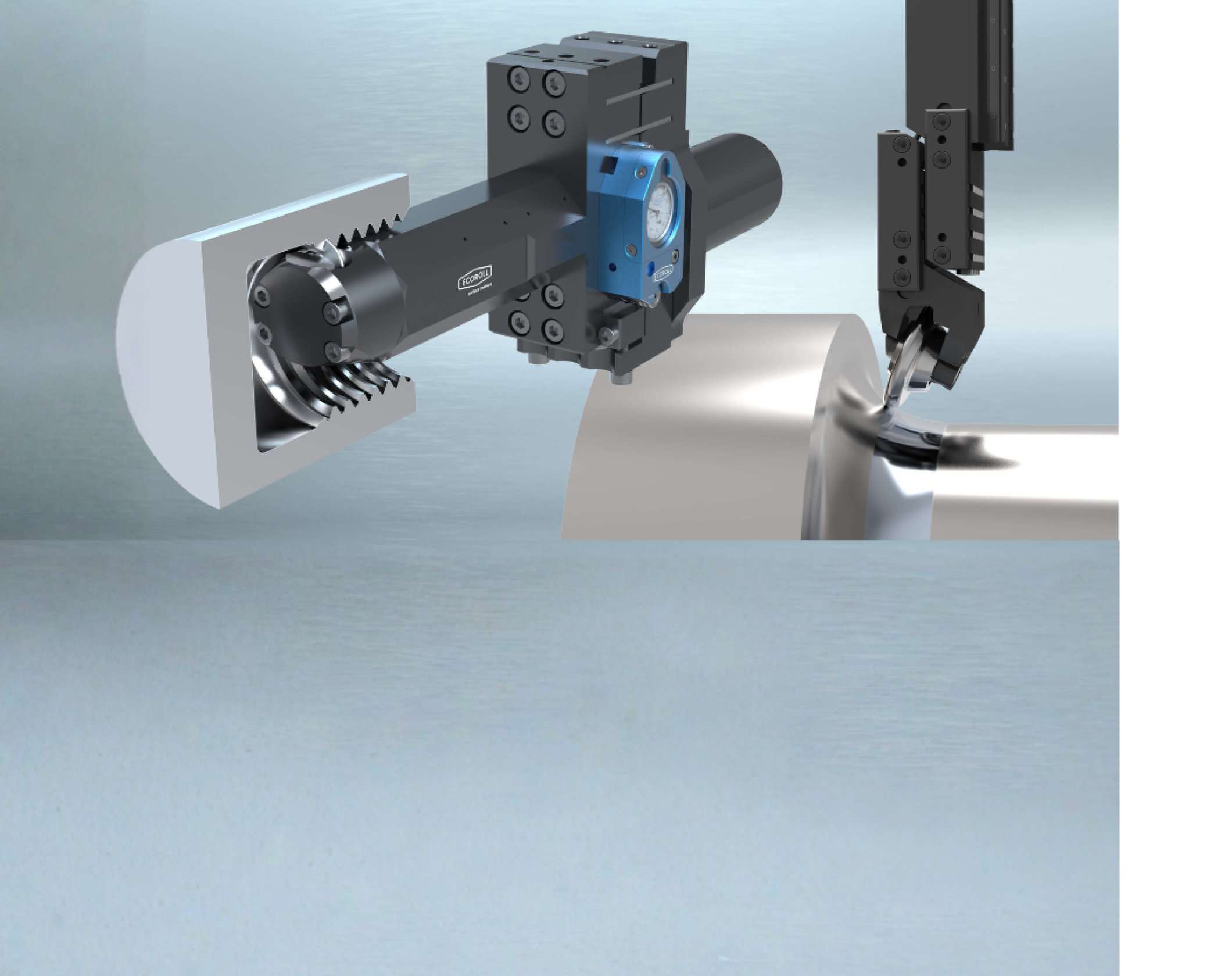

Deep Rolling

Deep rolling significantly increases component service life and fatigue strength. This forming process and the resulting work hardening of the near-surface layer improve the distribution of compressive residual stresses in highly stressed components, enhancing their fatigue resistance.



Operating Principle

  • Mechanical
    Single- or multi-roller tools with easy adjustment, high precision, and reliable operation.
  • Hydrostatic
    ECOROLL HG tools machine complex contours and freeform surfaces in all metallic materials.



Applications

  • Internal
    • Cylindrical bores starting at 6 mm in diameter
    • Tapered bores
    • Any rotationally symmetrical internal contours
    • Spherical surfaces
    • Internal fillets and grooves
    • Internal thread roots
  • External
    • Cylindrical surfaces starting at a shaft diameter of 0.5 mm
    • External tapers
    • Any rotationally symmetrical external contours
    • Spherical and freeform surfaces
    • External fillets and grooves
    • External thread roots
URMA - Schweiz - Switzerland - Suisse - Suiza - Werkzeugbau - Maschinenbau - Reibwerkzeug - Bohren - Ausdrehen - Reiben - Präzisionswerkzeuge - Werkzeugsysteme - Tool Systems - Tool manufacturers - Reaming - Drilling -  Boring System - Production d'outils de Précision - Systèmes d'outils - Fabricants d'outils - Outil d’alésage - Alésage - Foreurs - Usinage - Fabricación de herramientas - Ingeniería mecánica - Impresión 3D de metales - Herramientas

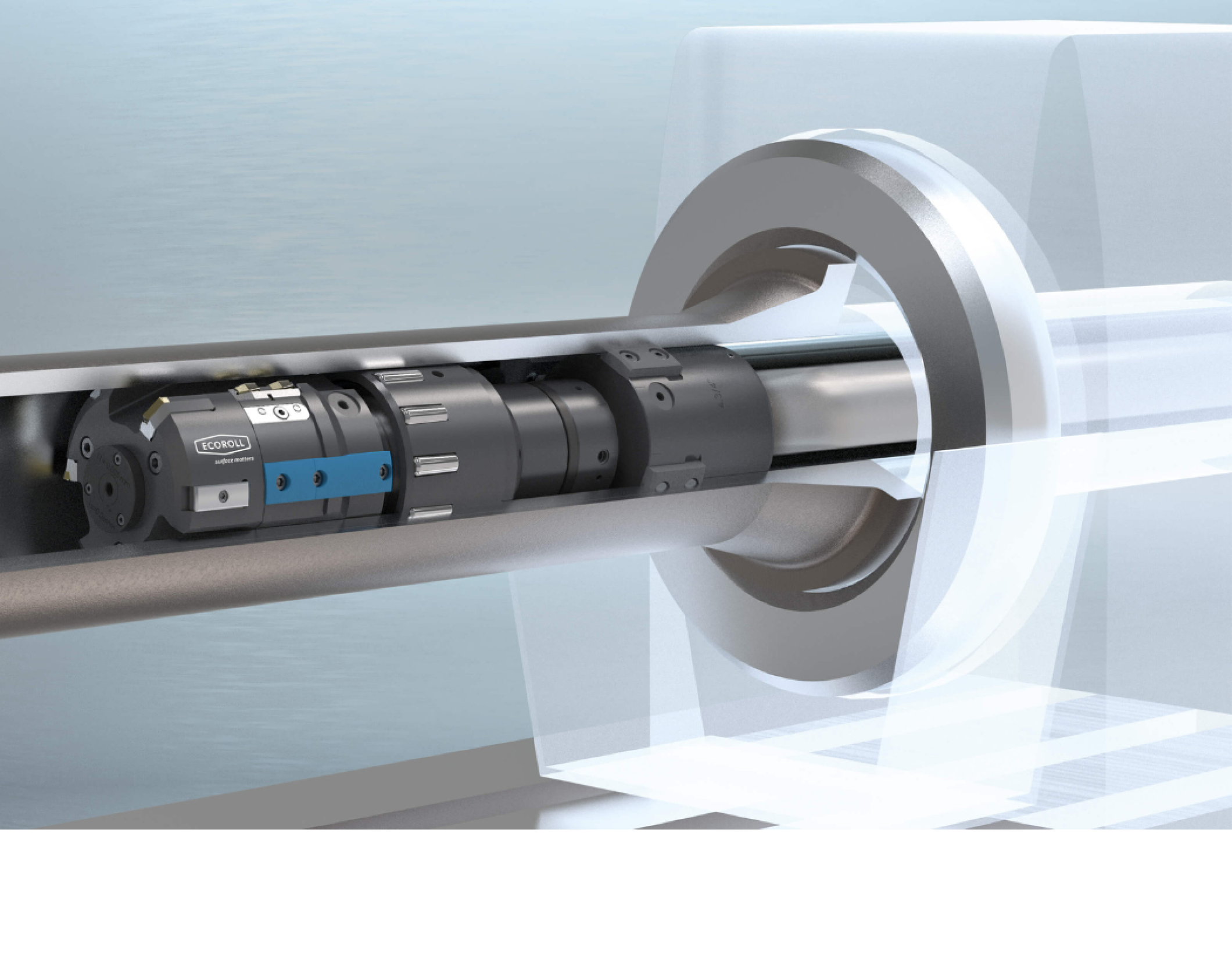

Cylinder Tube Machining (Peeling and Roller Burnishing)

Compared to honed cylinder tubes, roller-burnished cylinder surfaces offer significantly better sliding and sealing properties.

ECOROLL offers peeling tools for pre-machining and corresponding roller burnishing tools for finish machining. These tools are primarily designed for use on cylinder tube machining and deep-hole drilling machines, for example in a combined peeling and roller burnishing process. Short cylinder tubes can also be machined on turning machines.

URMA Test Center – Where Innovation Meets Precision

At the URMA Test Center, precision tools are developed and optimized under real-world conditions. Materials, machining strategies, and the latest technologies are extensively tested to ensure that URMA solutions meet the highest standards of efficiency, quality, and reliability.

Your benefits:

  • Customized test scenarios: Tailored to your specific requirements.
  • Practical analysis: Simulated manufacturing processes for optimal results.
  • On-site expertise: Direct collaboration with URMA experts to develop innovative solutions.
